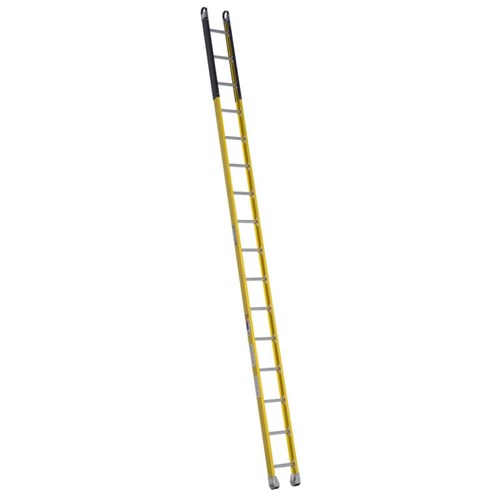

16' Type IAA Fiberglass Manhole Ladder

The M7100-1 Manhole ladders feature 3' replaceable plastic sleeves that protect the upper rails from manhole damage. These sleeves increase the longevity of the ladder. The combination rail shield and shoe protects the bottom of the rails from damage. The exclusive ALFLO rung joint means TWIST-PROOF performance, and these ladders also have a duty rating of 375 pounds. The vinyl coated aluminum hoop end caps are ideal for easily removing the ladder from the manhole. The TRACTION-TRED round rungs are slip resistant.

Dimensions

Rails Dimension: 3-5/16"

Flange Dimension: 1-3/16"

Rung Dimension: 1-1/4"

Base Width: 12-3/8" outside shoes

Specifications

Size: 16'

Reach Height: 18'

Load Capacity: 375 lbs.

Type: Type IAA Duty Rating

Performance Rating: 5 Star

Material: Fiberglass

Rung Type: Round

Foot Material: Slip-resistant pad

Number of Sections: 1

Certifications: ANSI A14.5 (2007); OSHA

Approx. Cu. Ft. Per Unit: 5.9

Approx. Shipping Wt. Lbs.: 39.5

Additional M7100-1 Series Models:

Model No.	Size	Reach Height	Approx. Cu. Ft. Per Unit	Approx. Shipping Wt. Lbs.
M7108-1	8'	11'	3	20
M7110-1	10'	13'	3.7	24
M7112-1	12'	15'	4.4	28
M7114-1	14'	17'	5.2	32
M7116-1	16'	18'	5.9	39.5

Manufacturer: Werner Co.
