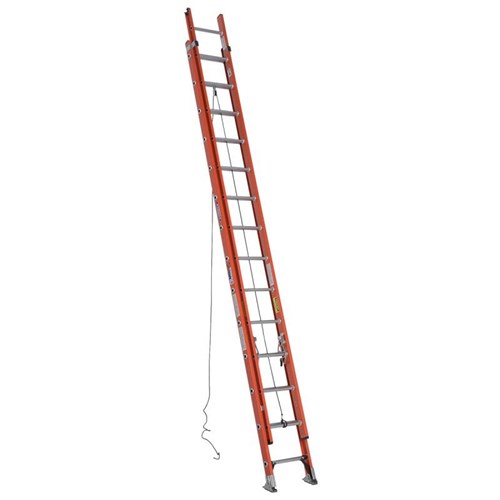

28' Type IA Fiberglass D-Rung Extension Ladder

D6228-2

Werner Co.

The D6200-2 fiberglass extension ladders have non-conductive rails making these ladders ideal for working near electricity. With a duty rating of 300 pounds, the D6200-2 series is durable and long lasting. The exclusive ALFLO rung joint means TWIST-PROOF performance on the job. The TRACTION-TRED D rungs are slip resistant and the side rails are interlocking. The dual action feet are for use on hard or penetrable surfaces and swivel easily. The base and fly sections separate easily to use the base section as a single ladder. The durable rail shield bracket and shoe help protect the bottom of the rail. The fly section rails are pre-pierced at the top for easy field installation of accessories.

Quick Overview

    Features include:

  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • 1-5/8" Slip-resistant Traction-Tred D-rungs
  • Smooth operating pulley with polypropylene rope
  • Interlocking Side Rails with internal rail guides on bottom of fly section securely connect rails
  • External guides at top of base section securely interlock rails
  • Heavy Duty extruded rung locks are spring loaded to operate smoothly
  • Pre-pierced holes for easy field installation of accessories
  • Base and fly separate easily to use base section as single ladder
  • Combination Rail Shield Bracket and Shoe with SHU-LOK and Slip-Resistant Pad
  • Molded Rung Braces on bottom step for increases durability
  • Mar-Resistant Molded End Caps
Interested in this item or want more information?

Hours:

Phone: 877-727-0767

Email:

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Rails Dimension: 3-5/16"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-5/8"
  • Fly Width: 16"
  • Base Width: 19" outside shoes

  • Specifications

  • Size: 28'
  • Reach Height: 27'
  • Max Working Length: 25'
  • Load Capacity: 300 lbs.
  • Type: Type IA Duty Rating
  • Performance Rating: 4 Star
  • Material: Fiberglass
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 12
  • Approx. Shipping Wt. Lbs.: 59.5

  • Additional D6200-2 Series Models:
    Model No.SizeReach Height Max Working Length Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    D6216-216'16'13'736.5
    D6220-220'19'17'8.744.5
    D6224-224'23'21'10.352
    D6228-228'27'25'1259.5
    D6232-232'31'29'13.771.5
    D6236-236'34'32'15.380.5
    D6240-240'37'35'1788.5

    Additional Information


    Manufacturer: Werner Co.
    For More Information on the 28' Type IA Fiberglass D-Rung Extension Ladder, [Click Here] to Link to Manufacturer Web Site
