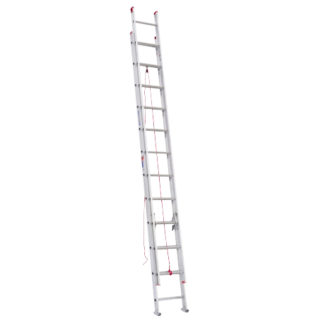

24' Type III Aluminum D-Rung Extension Ladder

D1124-2

Werner Co.

The D1100-2 series aluminum extension ladders are lightweight yet have a duty rating of 200 pounds. The Traction-Tred D rungs are slip resistant. Spring-loaded locks operate smoothly for easy operation. Pivoting shoes with slip-resistant foot pads. Mar-resistant end caps help protect the surface ladder is leaning against. Exclusive ALFLO rung joint means TWIST-PROOF performance every time

Quick Overview

    Features include:

  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • 1-1/2" Slip-resistant Traction-Tred D-rungs
  • Durable extruded rung locks are spring loaded to operate smoothly
  • Mar-resistant end caps
  • Smooth operating pulley with polypropylene rope
  • Modified I-beam side rails to optimize strength and weight
  • Pivoting shoe with slip-resistant pad
  • Pivoting shoe with slip-resistant pad
Interested in this item or want more information?

Hours:

Phone: 877-727-0767

Email:

Can't find what you want? Give us a call and we can help you find it.

Details


Dimensions

  • Rails Dimension: 3"
  • Flange Dimension: 15/16"
  • Rung Dimension: 1-1/2"
  • Fly Width: 14-1/8"
  • Base Width: 16" outside rails

  • Specifications

  • Size: 24'
  • Reach Height: 23'
  • Max Working Length: 21'
  • Load Capacity: 200 lbs.
  • Type: Type III Duty Rating
  • Performance Rating: 1 Star
  • Material: Aluminum
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.2 (2007)
  • Approx. Cu. Ft. Per Unit: 7.4
  • Approx. Shipping Wt. Lbs.: 30

  • Additional D1100-2 Series Models:
    Model No.SizeReach Height Max Working Length Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    D1116-216'15'13'4.918.5
    D1120-220'19'17'6.223
    D1124-224'23'21'7.430
    D1128-228'27'25'938.5

    Additional Information


    Manufacturer: Werner Co.
    For More Information on the 24' Type III Aluminum D-Rung Extension Ladder, [Click Here] to Link to Manufacturer Web Site
