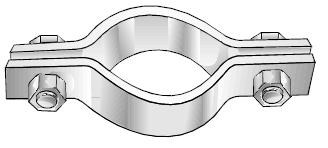

550 Series Single Bolt Pipe Clamp - 550-1140

550-1140

Globe Pipe Hanger Products

Recommended For The Support And Stabilizing Of Vertical Pipe Runs.

Quick Overview


  • Size Range : 1/2" Through 30" Pipe Sizes.
  • Material : Carbon Steel
  • Finish : Black.
  • Ordering : Specify Finish; Model Number And Pipe Size.
  • Function : Recommended For The Support And Stabilizing Of Vertical Pipe Runs. Overall Length Is Less Than A Riser Clamp.
Interested in this item or want more information?

Hours:

Phone: 877-727-0767

Email:

Can't find what you want? Give us a call and we can help you find it.

Details




Specifications
MaterialCarbon Steel
FinishBlack
Pipe Size14 inches
A22 5/8 inches
B19 1/4 inches
Bolt Size7/8 inches
Material Thickness1/2 inches
Material Size2 inches
Max. Recommended Load (At 650°F)2490 lbs
Max. Recommended Load (At 750°F)2220 lbs
Approx. Weight per 100 (pcs.)1670 lbs

Additional Information


Manufacturer: Globe Pipe Hanger Products
For More Information on the 550 Series Single Bolt Pipe Clamp - 550-1140, [Click Here] to Link to Manufacturer Web Site
