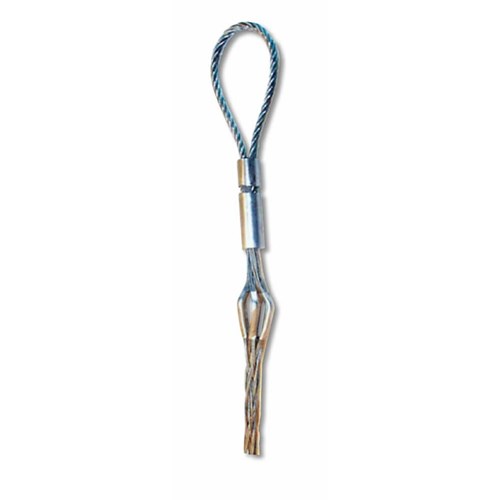

Pulling Grips – 00695 Series

Current Tools

SKU / Product Info	Quantity
00695-019 Conductor Size Range: 0.19" to 0.37"; Rope Size Length: 0.25" to 0.65"; Mesh Length: 24"; Head Length: 10"; Approx. Breaking Strength: 6,800 lbs.
00695-038 Conductor Size Range: 0.38" to 0.62"; Rope Size Length: 0.50" to 0.90"; Mesh Length: 36"; Head Length: 12"; Approx. Breaking Strength: 14,500 lbs.
00695-063 Conductor Size Range: 0.63" to 0.87"; Rope Size Length: 0.75" to 1.10"; Mesh Length: 48"; Head Length: 13"; Approx. Breaking Strength: 21,500 lbs.
00695-088 Conductor Size Range: 0.88" to 1.12"; Rope Size Length: 1.00" to 1.50"; Mesh Length: 60"; Head Length: 15"; Approx. Breaking Strength: 32,000 lbs.
00695-113 Conductor Size Range: 1.13" to 1.37"; Rope Size Length: 1.25" to 1.70"; Mesh Length: 76"; Head Length: 18"; Approx. Breaking Strength: 48,000 lbs.
00695-138 Conductor Size Range: 1.38" to 1.90"; Rope Size Length: 1.50" to 2.10"; Mesh Length: 89"; Head Length: 24"; Approx. Breaking Strength: 68,000 lbs.

Quick Overview

Interested in this item or want more information?

Hours: Monday - Friday 7am - 5pm Saturday 7:30am - Noon Sunday Closed

Phone: 877-727-0767

Email:

Can't find what you want? Give us a call and we can help you find it.

Details

These extra high strength grips feature a dual wire, double woven construction. This type of grip should be used for heavy duty applications such as overhead transmission wire. The grips are particularly suited to bare conductor and synthetic rope applica

Additional Information

Manufacturer: Current Tools

For More Information on the Pulling Grips – 00695 Series, [Click Here] to Link to Manufacturer Web Site
